Oscilloscope Tutor Kit Velleman EDU06

Description

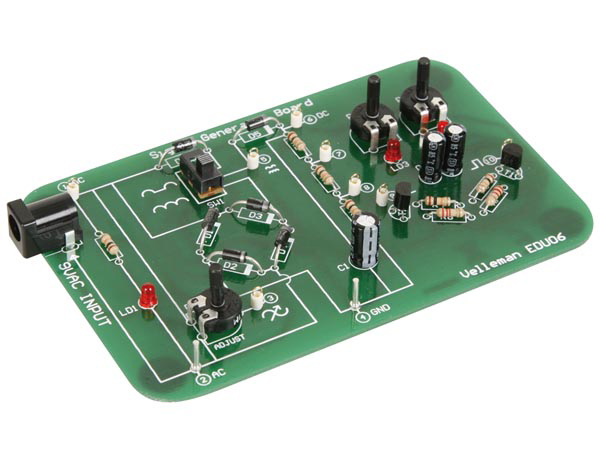

Oscilloscope Tutor Electronic Kit

Learn how to get the most out of your digital oscilloscope.

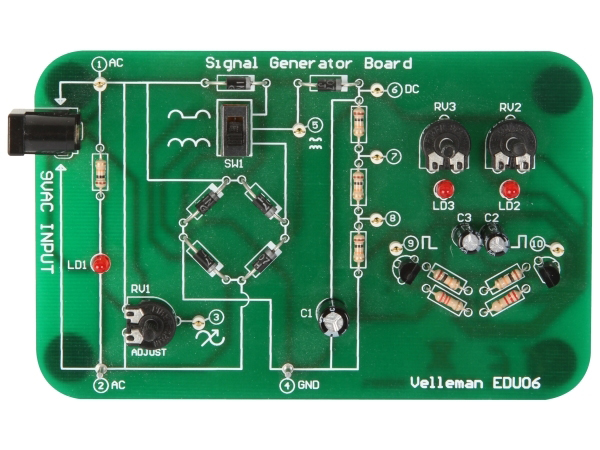

The board generates a number of safe “real-world” signals, which will use to perform measurements. Get familiarized with AC, DC and frequency measurements, sine and square waves, power supply ripple, full and half wave rectifiers, oscillators, etc.

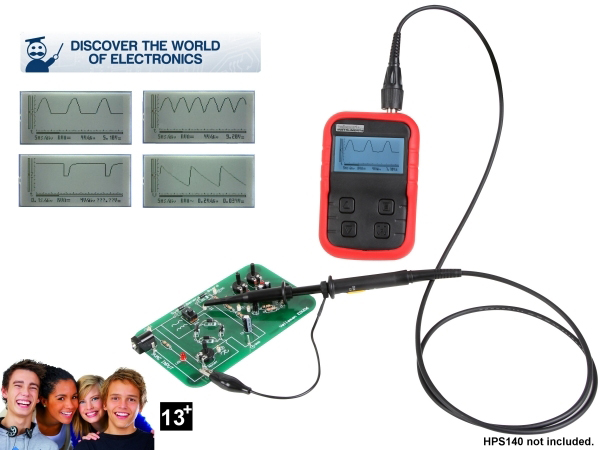

Learn what terms such as V/div, Time/div, trigger level, auto-setup etc., All experiments featured in this project are preformed with the Velleman HPS140 Handheld Pocket Scope. Most experiments can be done with any digital storage scope. Some experiments can be performed with an analog scope.

Features:

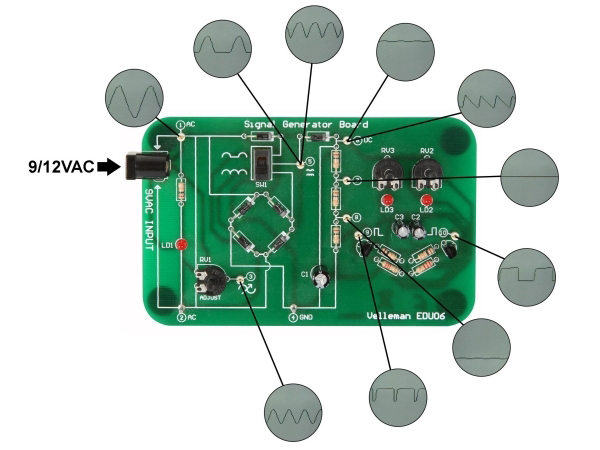

Signals

• alternating current (AC)
• adjustable AC
• full and half wave rectified AC
• smoothed direct current (DC)
• ripple
• astable oscillator
• assembled and tested, no soldering required

Specifications:

• power supply 9…12 VAC/min 100mA (adapter not incl.)
• dimensions: 116 x 74 x 24 mm / 4.6 x 2.9 x 0.9″
• optional: 9 VAC/500 mA adaptor PS905AC

Ideal oscilloscope tutorial.

Previous kit building experience required.

Availability: Fast Same Day Shipping!

Order No. EDU06
